TraySafe
Walker-mounted tray and cup holder that allows reverse walker users to carry items while moving
Key Responsibilities: Concept development, rapid prototyping
Skills & Tools: User interviews, SolidWorks, 3D Printing, laser cutting, hand sketching
Timeline: 10 weeks (2025)
I learned how to turn a specific user’s ergonomic needs into design decisions, collaborate effectively within a team, and communicate those choices while taking a product from concept through CAD and rapid prototyping.
Our Problem
Colleen has cerebral palsy and uses a reverse walker to support herself as she walks. She requires both hands to operate the walker. As a result, she cannot carry items that need to be easily accessible or upright.
How might we design a walker-mounted, adjustable, and removable device that can hold various items such as plates of food, water bottles, and cleaning supplies
User Requirements
I interviewed and observed Colleen at her workplace, pinpointing 3 major requirements for our design.
Stable: Remains steady under weight, preventing objects from falling
Unobtrusive: Does not interfere with the user’s ability to operate the reverse walker
Ergonomic: Designed for left-hand dominance
Ideation

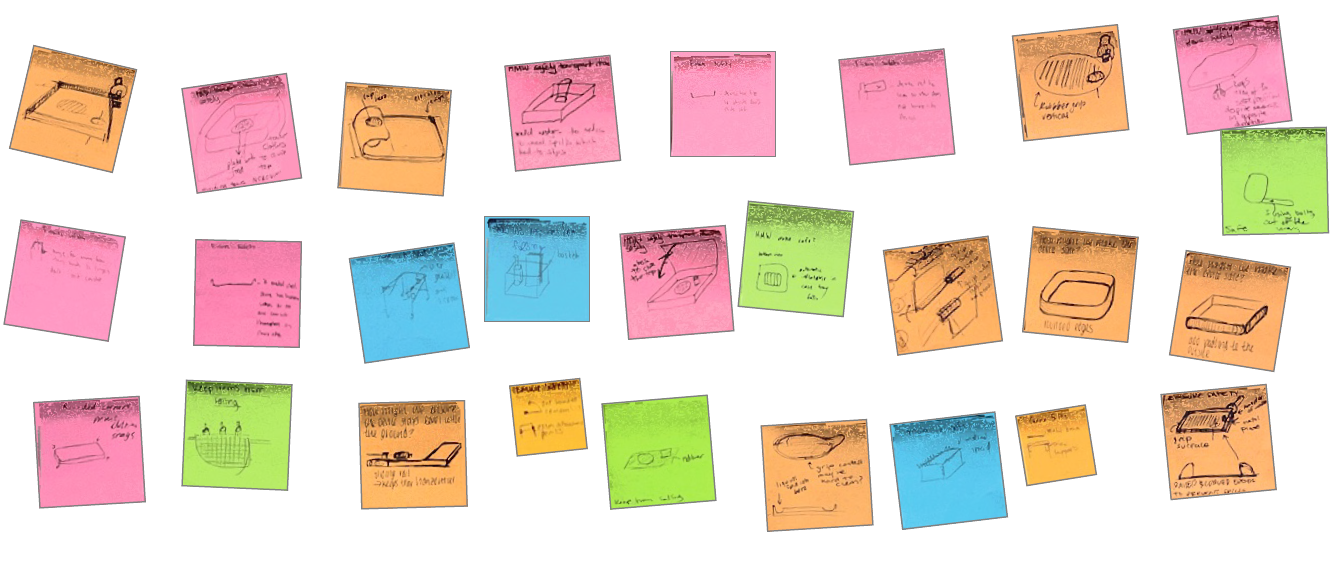

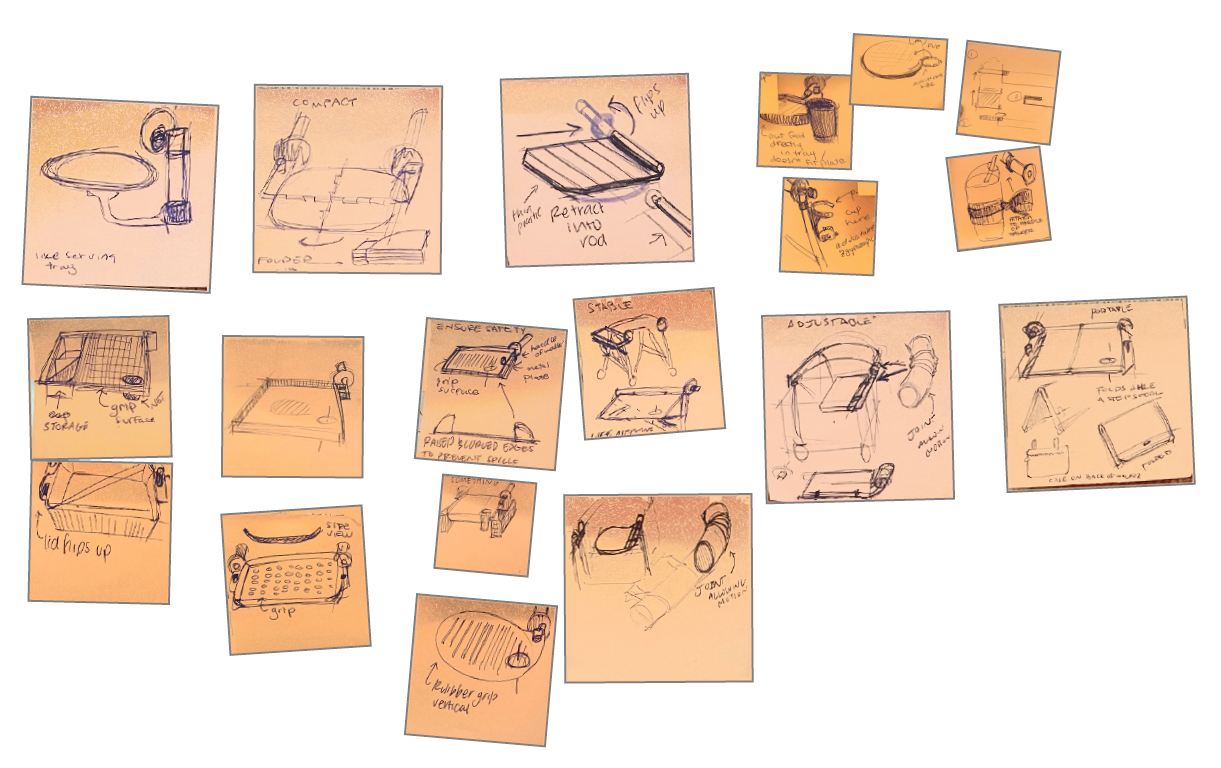

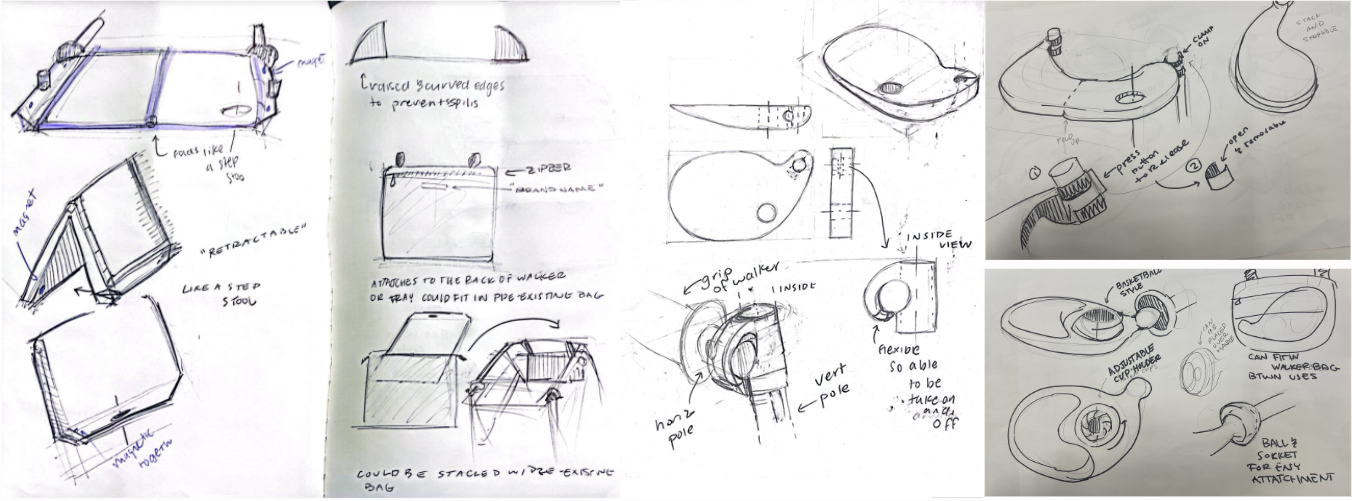

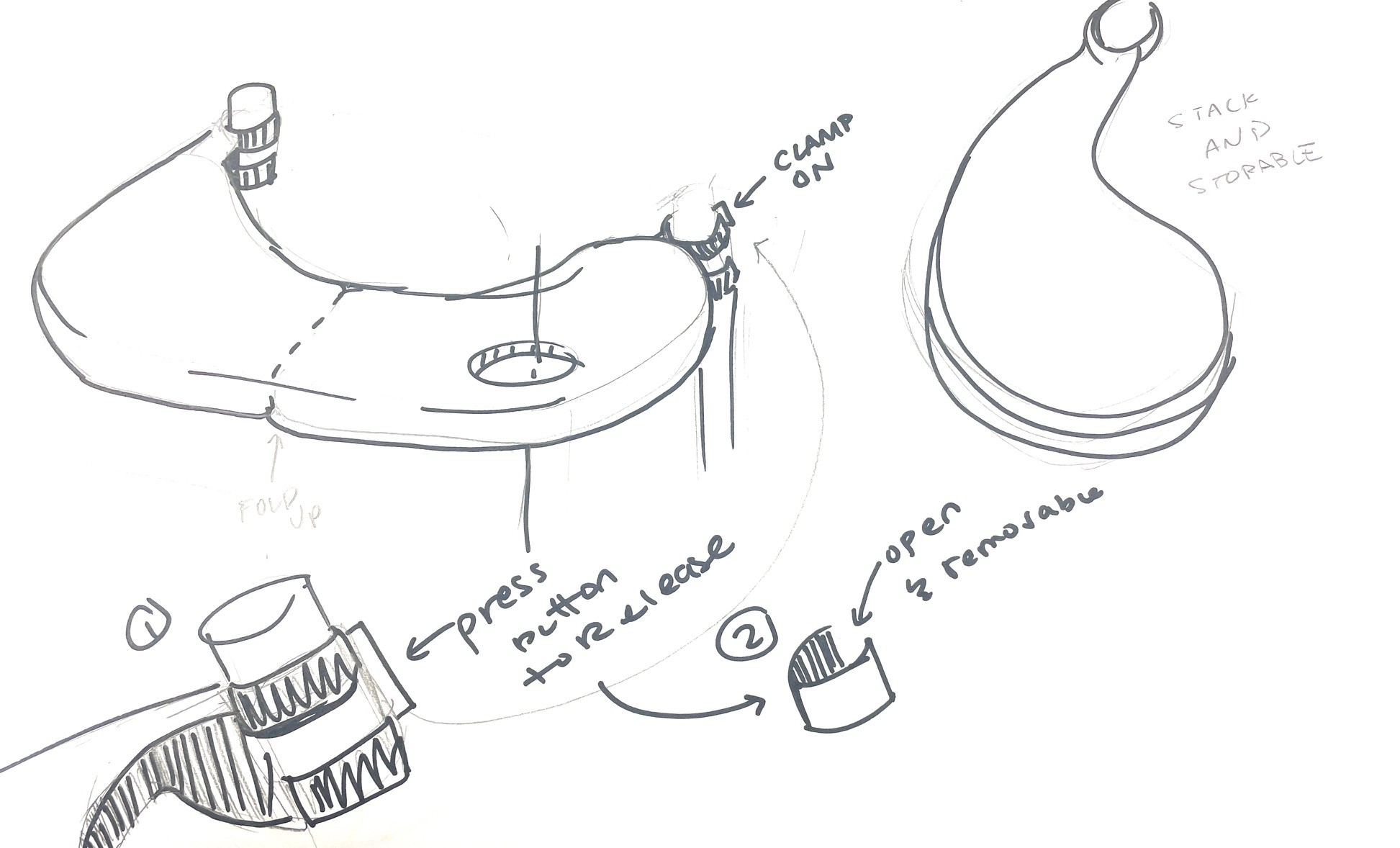

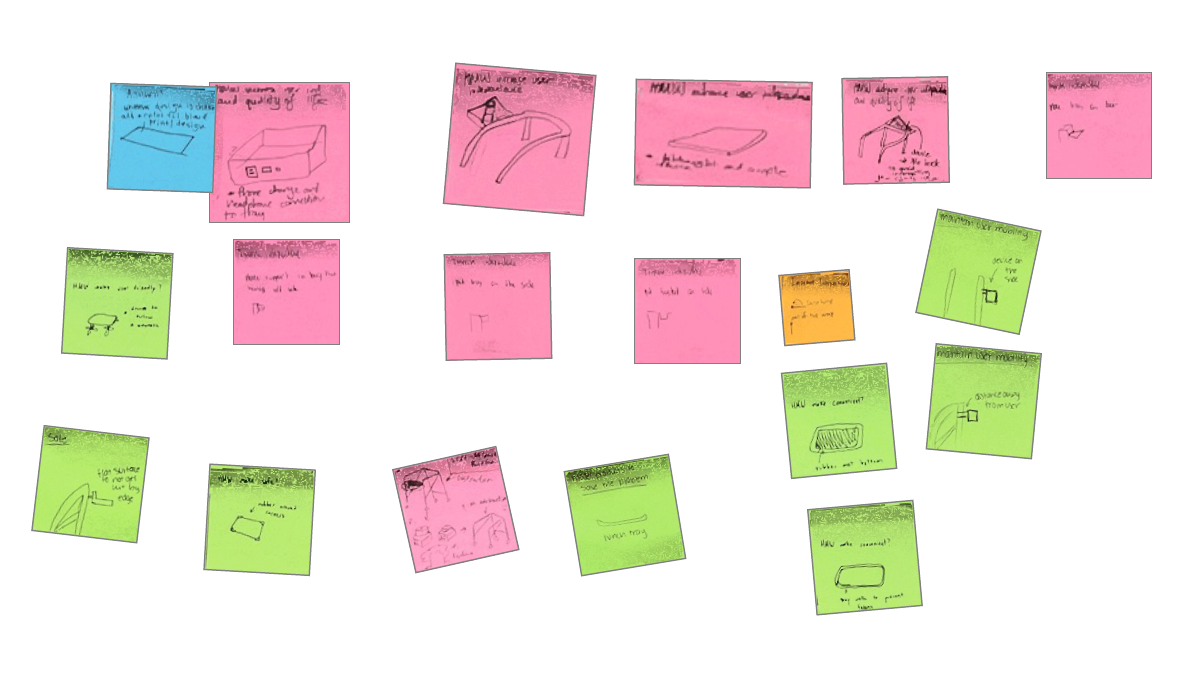

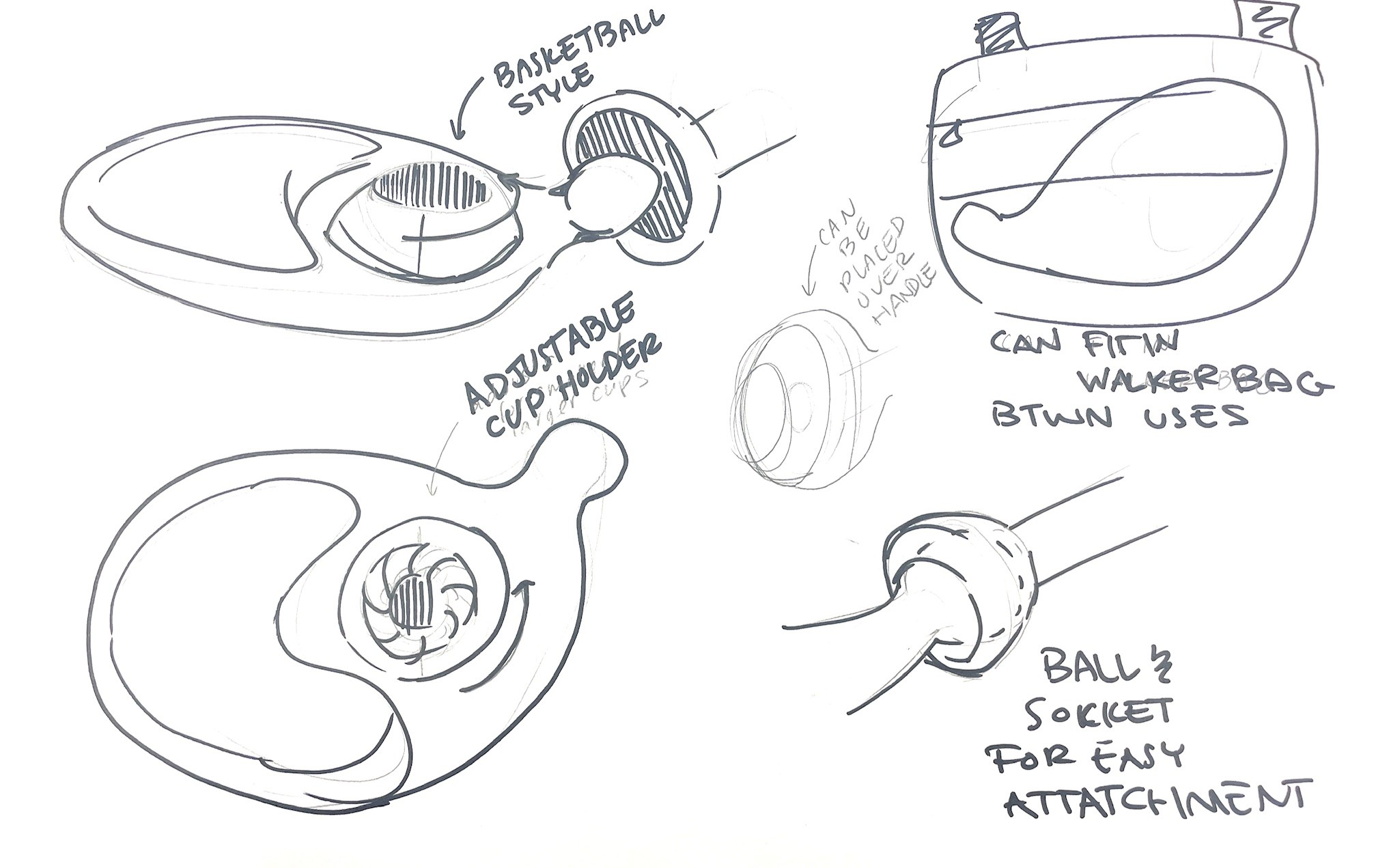

I ideated 50 ideas based on user requirements and prototyped 3 designs.
Rapid Prototypes

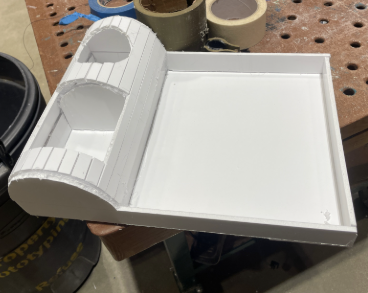

Palette Tray
❌ Too small
Cup Holder
✅ Unobtrusive
Palette Tray
✅ Compartments
These 3 designs were all personally tested by Colleen, she liked the compartments of the tray and the designated cup holder for her bottles.
Final Design

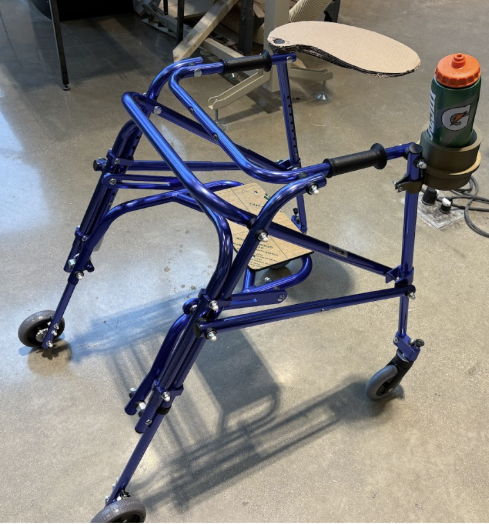

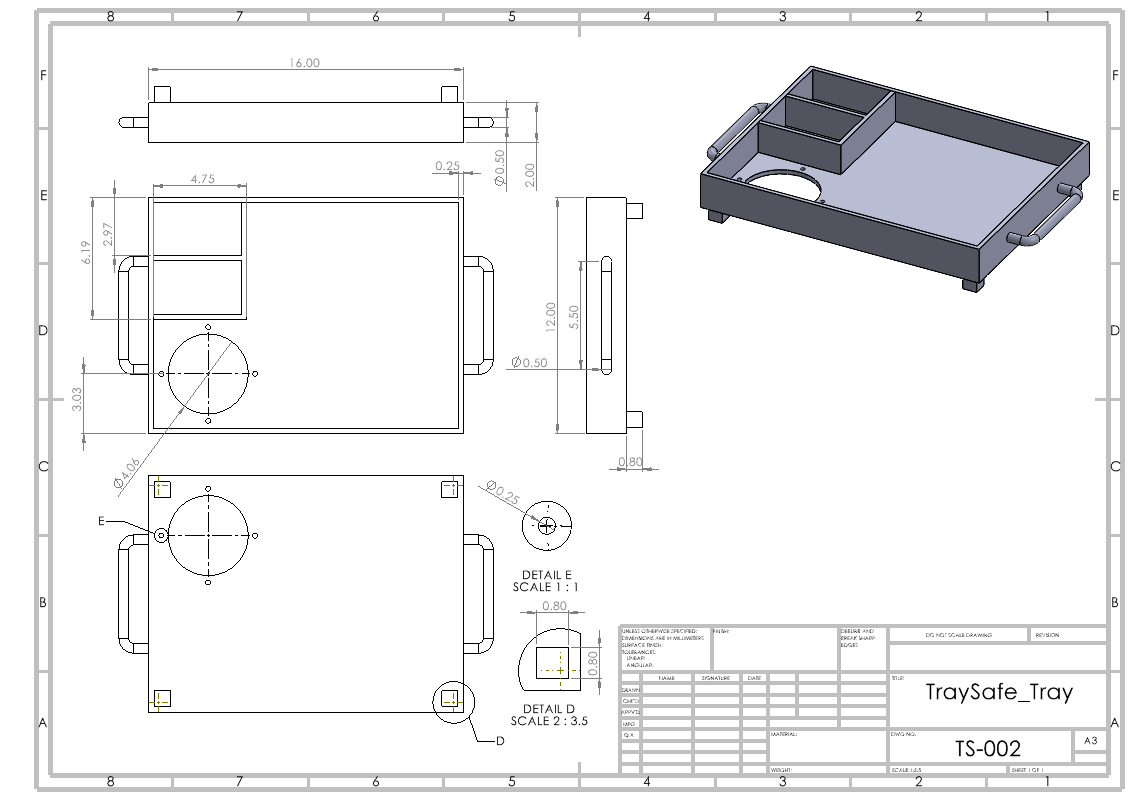

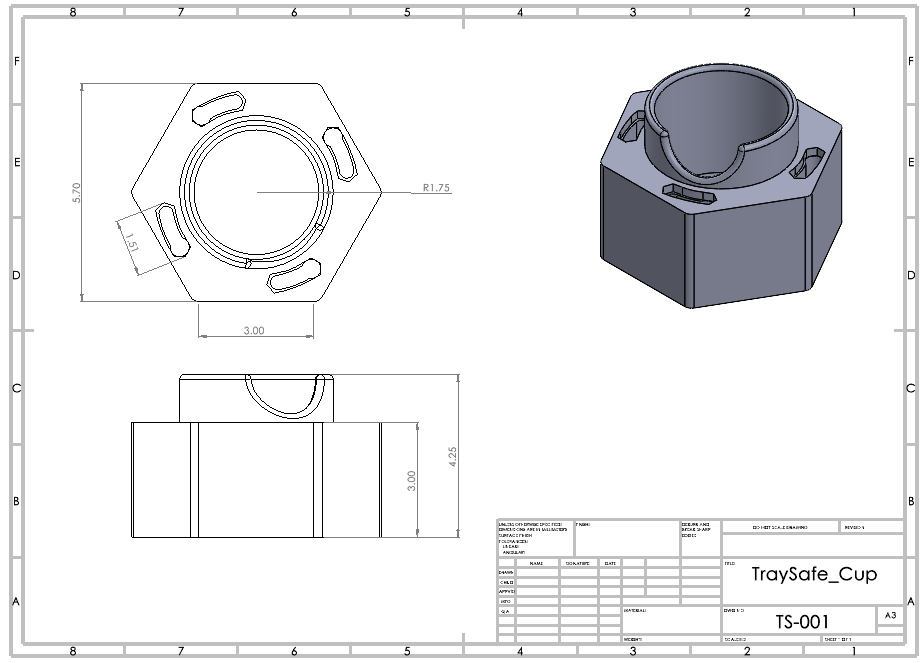

TraySafe consists of a removable tray and a cup holder that mounts directly to a reverse walker.
The cup holder stabilizes bottles, while the tray uses custom compartments and a Dycem mat to keep objects from shifting.
Rubber feet keep the tray stable when detached and set on a surface.
Manufacturing

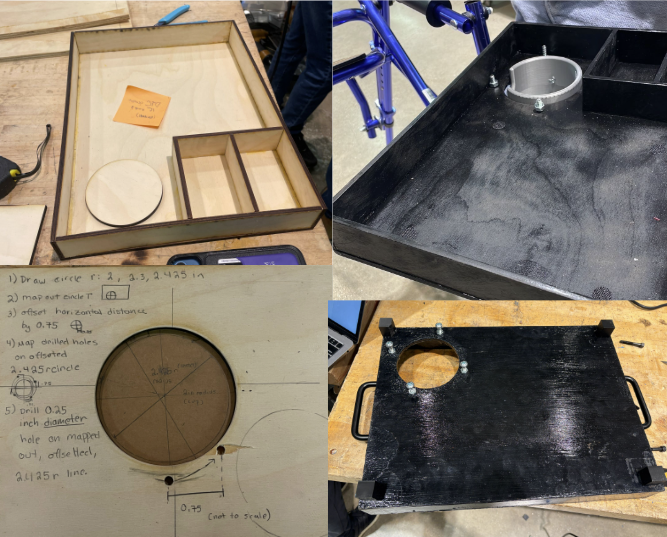

Tray: Black spray painted plywood cut with universal laser with a food-safe polyurethane sealant.

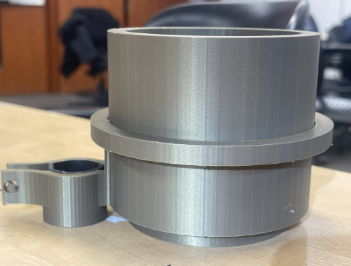

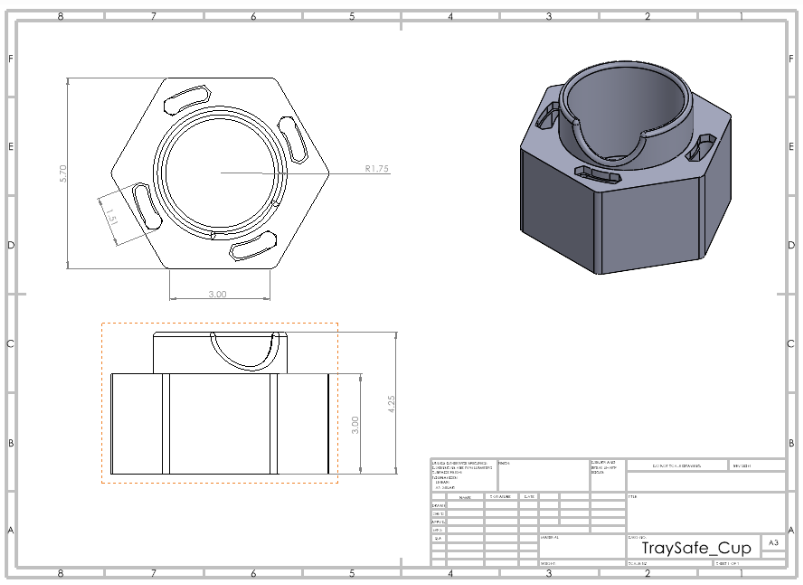

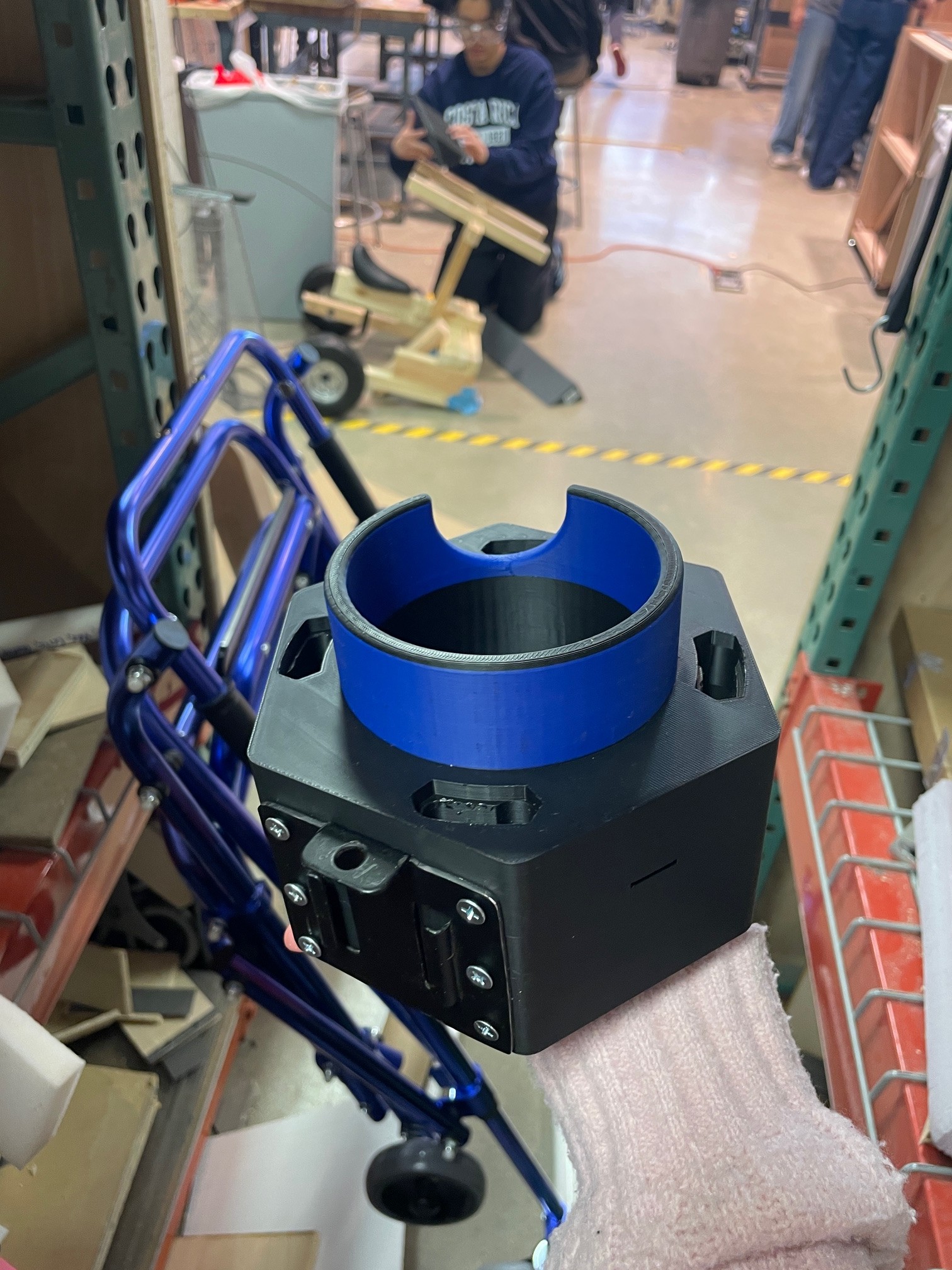

Cup Holder: Blue and Black PLA 3D printed using a Bambu X1-C Printer.

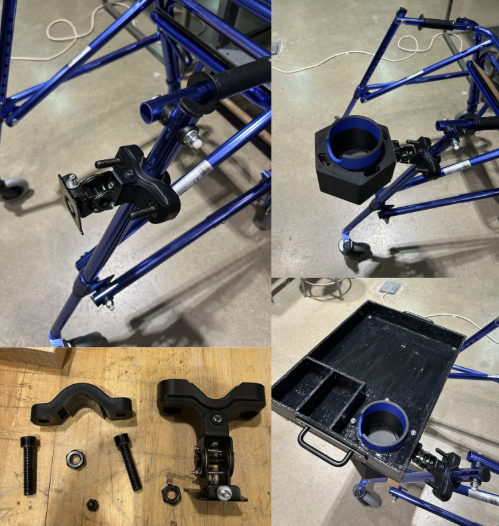

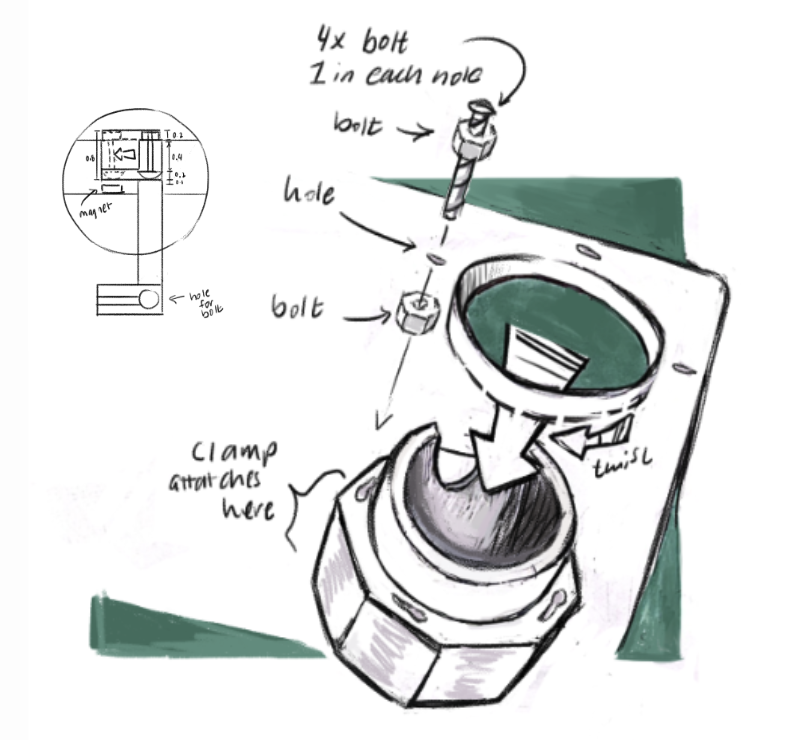

Assembly: Mounted the bracket to the cup holder, attached the clamp, and installed the full assembly onto the walker. Nuts and bolts were added to the tray to create the twist-and-lock mechanism.

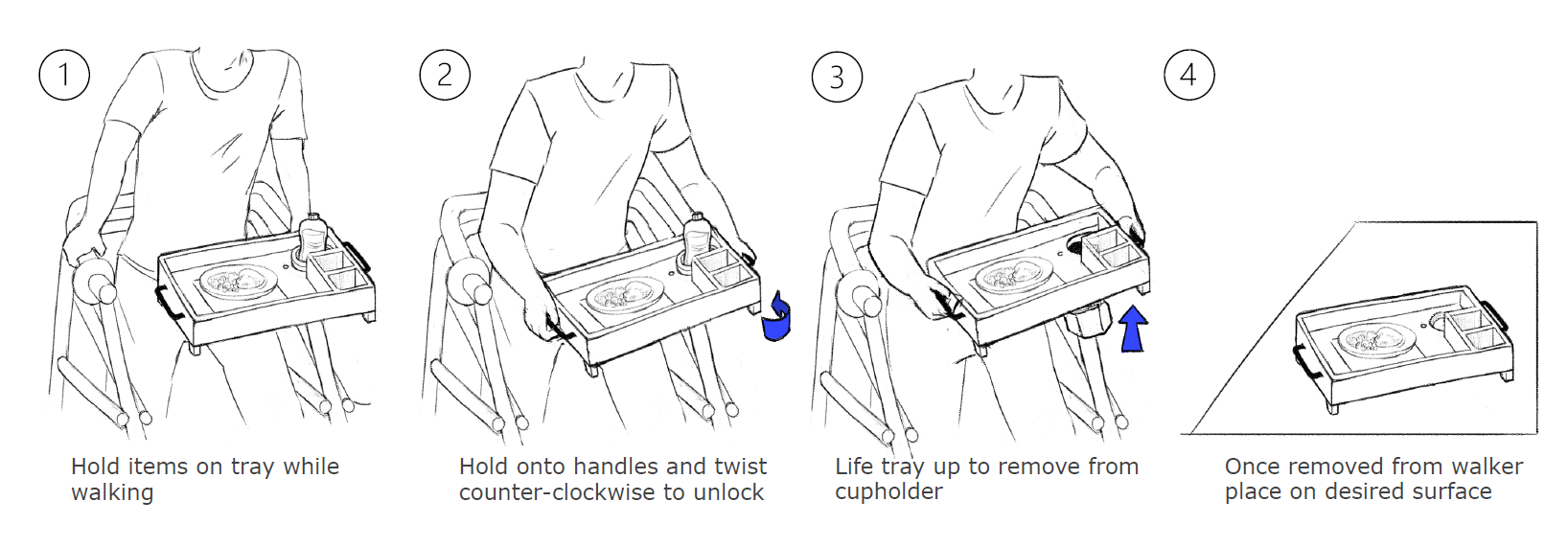

How to use Traysafe
